Overview Parameters (three-phase 380V 50Hz)Parameters (single phase 220V 50Hz)

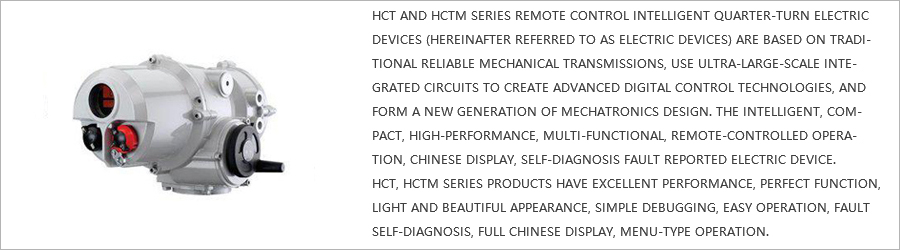

The main features of HCT, HCTM electric device:
1. It adopts ultra-large-scale digital integrated chip and system function integrated chip, so it has powerful functions, fast response and high precision level.
2, mechanical and electrical integration design, small size, light weight.
3. Rich information display content and user-friendly human-computer dialogue interface.
4. The function, parameter setting, debugging and on-site operation of the electric device are all set by the handheld infrared remote controller, and it is not necessary to open the cover.
5, all Chinese, numbers and characters display, menu-style operation.
6, super self-diagnosis function.
7, modifiable parameter settings and configurable multi-group signal output.
8, with power phase protection and phase sequence automatic correction.
9, non-intrusive isolation seal, no through-shaft design.
10. The plug-in structure design of the electrical control wiring makes Jie, save time and effort.
11. Optional Fieldbus Control Technology
Ⅱ、Technical parameters of HCQ series products (three-phase 380V 50Hz)
model | Output torque （N.m) | Output speed （r/min) | Motor Power （kW) | Rated current of motor （A） | Turn 90° time （S) | Flange number | Maximum stem diameter （mm） | weight （Kg） |
HCT125 | 125 | 1 | 0.025 | 0.3 | 15 | F05、F07 | ?22 | 23 |
HCT250 | 250 | 1 | 0.04 | 0.6 | 15 | F07、F10 | ?28 | 23 |
HCT500 | 500 | 0.5 | 0.04 | 0.6 | 30 | F10 | ?42 | 23 |
HCT1000 | 1000 | 0.5 | 0.04 | 0.6 | 30 | F12、F14 | ?42～60 | 37 |
HCT2000 | 2000 | 0.25 | 0.04 | 0.6 | 60 | F14 | ?42～60 | 37 |
Ⅲ、Technical parameters of HCQ series products (single phase 220V 50Hz)
| model | Output torque （N.m) | Output speed （r/min) | Motor Power （kW) | Rated current of motor （A） | Turn 90° time （S) | Flange number | Maximum stem diameter （mm） | weight （Kg） |
HCT125 | 125 | 1 | 0.025 | 0.6 | 15 | F05、F07 | ?22 | 23 |
HCT250 | 250 | 1 | 0.04 | 0.95 | 15 | F07、F10 | ?28 | 23 |
HCT500 | 500 | 0.5 | 0.04 | 0.95 | 30 | F10 | ?42 | 23 |
HCT1000 | 1000 | 0.5 | 0.04 | 0.95 | 30 | F12、F14 | ?42～60 | 37 |
HCT2000 | 2000 | 0.25 | 0.04 | 0.95 | 60 | F14 | ?42～60 | 37 |
